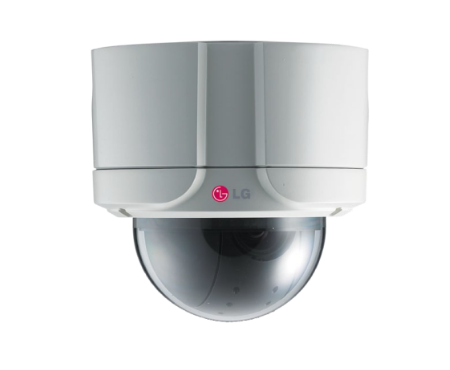

600TVL 28x
PTZ Dome Camera

LCP2840

  • 4.5 mm (1/4 Type) Super HAD II CCD
  • x28 Zoom (F 1.5 ~ 3.7, f =3.5 ~ 98 mm)
  • 600TV Lines
  • 0.00001 Lux @ Sens-up x128
  • 3D-DNR, WDR, ICR Day & Night
  • Panning Range & Speed : 0˚~350˚, Max 120˚/Sec
  • Tilting Range & Speed : 0˚~180˚, Max 120˚/Sec
  • RS-485, 8 Privacy Zone Masking
LCP2840

x28 Optical Zoom x28 Optical Zoom

Close monitoring is possible through the powerful x28 optical zoom.

x28 Optical Zoom

600TV Lines 600TV Lines

This camera is a 600TV lines highresolution dome camera which provides clear images even in low-light indoor places.

600TV Lines

ICR Day & Night ICR Day & Night

When light falls down to a certain level, the camera switches to monochrome mode automatically.

ICR Day & Night

3D DNR 3D DNR

The much improved 3D DNR function creates no noise and ghost phenomenon in low illumination conditions, ensuring clear images.

3D DNR

WDR WDR

WDR allows the dark portions of a bright image to be shown clearly, thus enhancing details and removing noise.

WDR

Sens-Up Sens-Up

This mode has kept the shutter open for a long time to increase luminance without noise.

Sens-Up

Privacy Zone Masking Privacy Zone Masking

By setting the privacy zones, it is possible to prevent the violation of one’s privacy as you monitor the interior or exterior of a building.

Privacy Zone Masking

Programmable presets / Tores / Patterns Programmable presets / Tores / Patterns

With its various options such as presets, tores, patterns, and auto-panning, this camera can be programmed to scan wide area, and not to miss a single detail.

Programmable presets / Tores / Patterns

Vandal Proof / IP66 Vandal Proof / IP66

A strong and durable cover protects the camera from external harms, especially from impacts due to any drastic change in temperature or humidity.

Vandal Proof / IP66
Design, features and specifications subject to change without notice. BACK TO TOP
