IP 2Ch + Analog 16CH 4CIF
Hybrid Digital Video Recorder

LE5016D

  • Hybrid Video Input Processing(IP 2ch+analog 16ch)
  • Various Recording Resolutions (4CIF, 2CIF, CIF)
  • 4CIF Real-time Recording
  • Time and Date Sync from NTP Server
  • Multiplex
  • Automatic Backup by Schedule
  • Health Check (HDD, FAN)
  • e-SATA for Quick and Easy Archiving
LE5016D
LE5016D

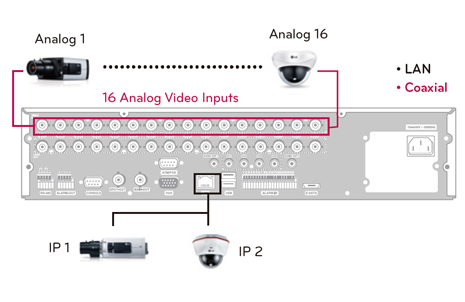

2 IP input channels 2 IP input channels

Two IP input channels enable video recording from IP cameras as well as analog cameras, thereby giving users more flexibility in recording and rearranging their existing security system.

2 IP input channels

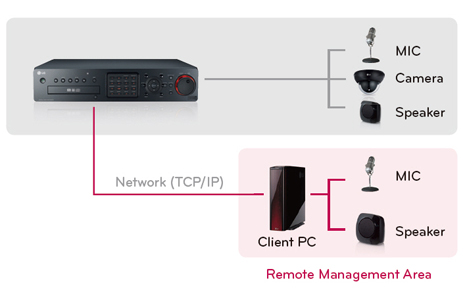

2-Way Audio 2-Way Audio

Two-way communication lets the DVR operator engage in audio communication with a manager in a remote area, thus making remote management possible.

2-Way Audio

60 Sec Pre-Alarm Recording 60 Sec Pre-Alarm Recording

It can record what happened one minute before the event, thereby securing accurate data on the event.

60 Sec Pre-Alarm Recording

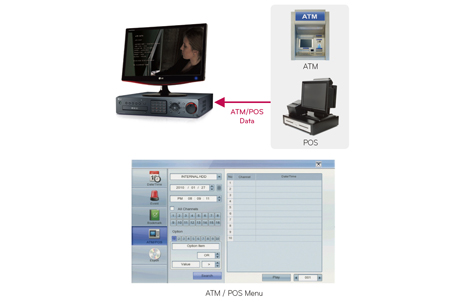

ATM/POS LINKAGE ATM/POS LINKAGE

ATM and POS data can be stored with visual data, thereby effectively responding to financial safety accidents.

ATM/POS LINKAGE

Automatic Backup by Schedule Automatic Backup by Schedule

The backup schedule function registers image and other data backup schedule in order to connect to a large-capacity backup system in performing daily, weekly, or monthly backup.

Automatic Backup by Schedule

e-SATA e-SATA

Users can use an external storage system using the e-SATA interface to resolve a limited internal storage space, and back up and record e-SATA data in real time.

e-SATA

H.264 Compression H.264 Compression

It uses the latest image compression method H.264 HP, enabling the transmission of quality images better than the existing method can.

H.264 Compression

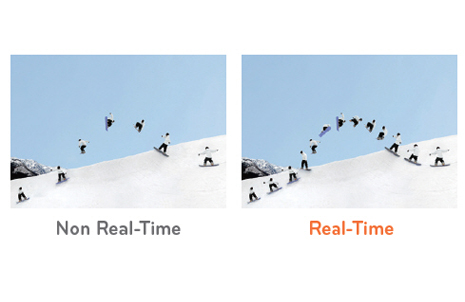

Real-Time Recording Real-Time Recording

Images are recorded in real-time, thus providing the best monitoring and playback environment.

Real-Time Recording

Mobile Monitoring Mobile Monitoring

The user can use a smartphone and monitor DVR security images anytime, anywhere in real time.

Mobile Monitoring

Ipsolute VMS Ipsolute VMS

The LG Video Management System is an IP-Surveillance software that works with the LG Video Server and LG IP cameras to provide video monitoring, recording setting and event management functions.

Ipsolute VMS
Design, features and specifications subject to change without notice. BACK TO TOP
