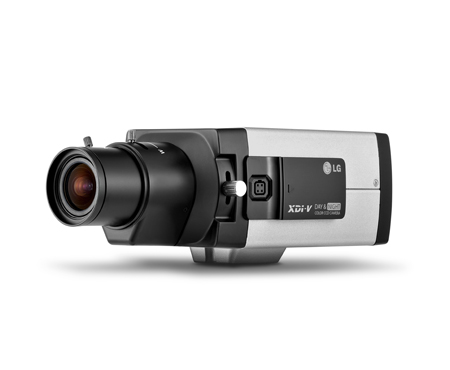

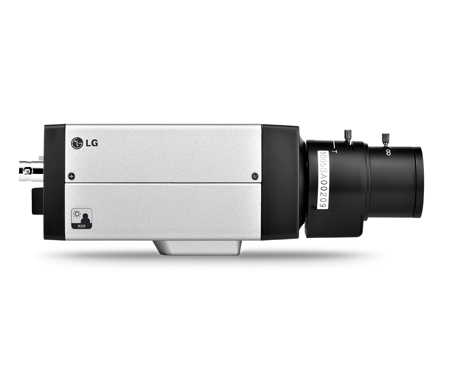

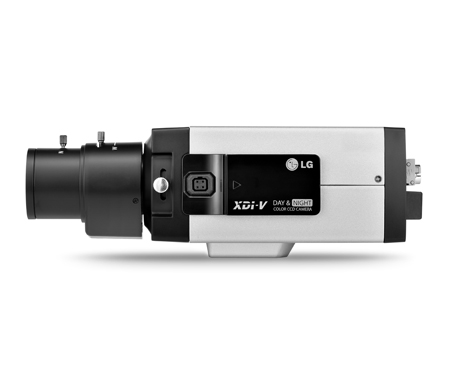

700TVL WDR Box Camera


  • 6mm (1/3 Type) Super HAD CCD II
  • 520k / 610k Pixels (NTSC / PAL)
  • 650TVL @ Color / 700TVL @ B/W
  • 0.00001 Lux @ Sens-up x512, F1.2
  • 2D + 3D DNR, WDR, ICR Day & Night
  • 14 Privacy Zone Masking, Motion Detection (8 Zones)
  • RS-485, Coaxial Communication

700TV Lines 700TV Lines

The world’s best resolution of 650 TV Lines(Color) / 700 TV Lines(B/W) is realized by combined technology of 3 Line filter, edge enhancement and 520K/610K sensor image.

700TV Lines

520k / 610k (NTSC/Pal) Pixel 520k / 610k (NTSC/Pal) Pixel

High resolution and sharpness can be maintained under strong light source.

520k / 610k (NTSC/Pal) Pixel


In dark environment, brighter and ghost free images can be obtained by using higher AGC and Image Synthesis Technology.


ICR Day & Night ICR Day & Night

When light falls down to a certain level, the camera switches to monochrome mode automatically.

ICR Day & Night


WDR allows the dark portions of a bright image to be shown clearly, thus enhancing details and removing noise.


Sens-Up Sens-Up

This mode has kept the shutter open for a long time to increase luminance without noise.


Motion Detection Motion Detection

Whenever the scene is changed by motion, we automatically detect and display the position of movement with mask.

Motion Detection

Privacy Zone Masking Privacy Zone Masking

By setting the privacy zones, it is possible to prevent the violation of one’s privacy as you monitor the interior or exterior of a building.

Privacy Zone Masking

Low Power Consumption Low Power Consumption

XDI-V helps low power consumption compared to conventional through application of high performance & low power DSP and high-efficiency power module.

Low Power Consumption

Coaxial Communication Coaxial Communication

Using a coaxial cable, it can transmit video and control signal.

Coaxial Communication
Design, features and specifications subject to change without notice. BACK TO TOP
